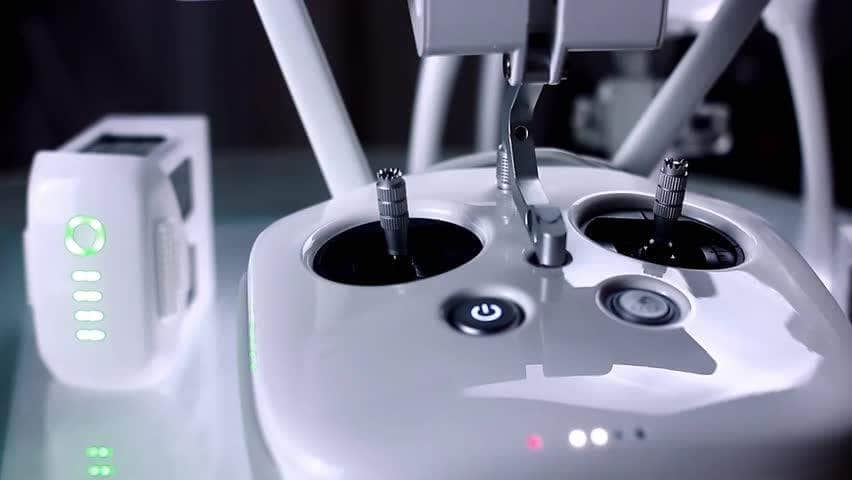

Phantom 4 Remote Repair

Phantom 4 Remote Repair


by simon coughlan

Fault Reported :  Phantom 4 Remote unusable / wont charge

Issue: Phantom 4 Remote Indicating Critically Low Battery When fully Charged

Further info : Remote continuous beeping ( critical battery ), Battery indication either low or incorrect. DJI go app indicated battery critically low.

Steps :

1. Measured battery voltage - dvm indicated battery was fully charged

2. Replaced battery with fully charged battery / same issue

3. Identified voltage regulator as being the main suspect.

4. Re-flowed solder  @ 250C for 15 seconds

5. Reassembled remote and tested ok.

Send your DJI Remote / Phantom or Mavic to duvolab for fast repairs.

https://www.duvolab.com/pages/dji-repairs






simon coughlan
